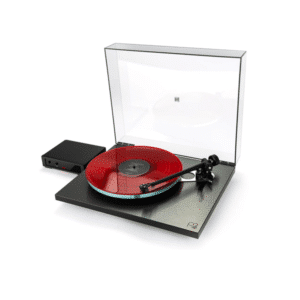

Rega Planar 3 RS Edition Turntable
The Rega Planar 3 RS Edition (Rega Special) is constructed using a brand-new aluminium metal skin HPL laminate to create the stiffest plinth at Planar 3 level we have produced. This stunning dark brushed metallic plinth, edged in high gloss black creates a stunning platform for the iconic Planar 3.
The RS Edition includes a custom matched Neo MK2 PSU with each motor vibration circuit hand tuned to each individual motor. This low noise 24v motor drives the sub platter via our Reference EBLT drive belt for ultimate accuracy in speed control. Finally, the legendary handmade RB330 tonearm is mounted and supplied with the all new award winning Nd5 moving magnet cartridge.
Optimising an icon.
Rega has pioneered the use of lightweight, ultra rigid plinths over many years. Our use of lightweight particulate core with a highly rigid phenolic resin skin became the foundations of the high level of performance achieved by the now iconic original Planar range.
The new Planar 3 RS Edition takes this design philosophy to the next level using a High Pressure Laminate, (HPL) usually reserved for the Planar 6, Planar 8 and Planar 10 models for increased rigidity. In addition, this premium HPL has a stunning brushed metal dark aluminium skin with a beautiful satin finish. You will also find our double brace system mounted specifically where the increased rigidity is required which forms a structurally sound “stressed beam” assembly.
This complex plinth design prevents energy absorption and unwanted resonance, which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy, such as motor or bearing noise directly into the rotating record. The use of braces allows double thickness phenolic resin in these key areas which directly addresses the issue of mass absorption and unwanted energy transmission.
Nd5 Moving Magnet Cartridge
Each Nd5 is meticulously hand-made by our highly skilled technicians. The stylus profile is a perfect elliptical nude diamond. This is a true ellipse created by an elliptical grinding process made from polycrystalline manmade diamond. The design uses brand new generator geometry with perfect symmetry to achieve accurate channel balance. The Nd5 also has an optimised pole gap for superior linearity and cross talk characteristics. This provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response.
Plinth
Brushed dark aluminium skinned HPL laminated plinth for improved rigidity.
Neo MK2 PSU
The Neo MK2 PSU is an advanced turntable power supply providing user controllable fine speed adjustment, an advanced anti-vibration motor circuit and the convenience of electronic speed change. The Neo MK2 reduces motor noise, improves speed stability and rotational speed accuracy.
KEY FEATURES:
• Brushed metal dark aluminium HPL laminated plinth
• RB330 Precision tonearm
• Nd5 MM cartridge factory fitted
• Neo turntable PSU MK2 included (speed control + anti vibration circuit)
• 24 V low noise, low vibration motor, hand tuned to the custom Neo PSU Mk2
• CNC machined custom pulley
• Reference EBLT drive belt fitted as standard
• Double brace technology
• 12 mm float glass opti-white polished platter
• Supplied with a smoked dust cover as standard.
