Description
Iconic design for modern CD enthusiasts
CD 60 is for those who cherish their CD collections and who seek to discover new details upon every listen.
Luxurious Design Matches The Most Musical Sound
Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear.
Pairs Beautifully With Marantz Amplifiers
Complementary visual design plus compatible technology make CD 60 a natural companion to MODEL 40n, MODEL 30, or other Marantz amplifiers.
Rich, Warm, and Spacious Sound
Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves.
Optimized HDAM Circuit
In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
High-Current Power Supply
The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.
Plays Hi-Res Audio USB Sources
The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.
KEY FEATURES:
• Luxurious Design
• Plays Hi-Res Audio USB Sources
• High-Current Power Supply
• Optimized HDAM Circuit
• Rich, Warm, and Spacious Sound
Specifications
GENERAL:
• Unit (W x H x D mm): 442 x 129 x 396
• Net weight: 7.5kg
• Packaging Dimensions (W x H x D mm): 525×249×511

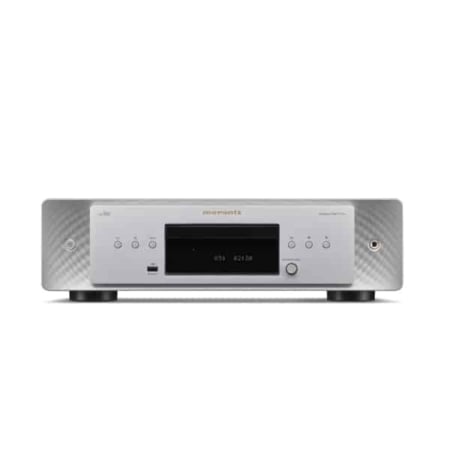

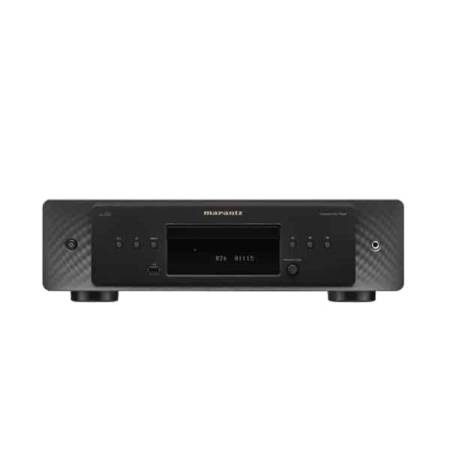

• Available Colors: Silver/Gold and Marantz Black
• Front (Center) Panel: Aluminum
SPECIFICATIONS:
• Frequency response: USB DSD: 2Hz – 50kHz (-3dB) / USB PCM: 2Hz – 50kHz (-1.5dB) / CD: 2Hz – 20kHz
• Total Harmonic Distortion: USB DSD: 0.0006% / USB PCM 24bit: 0.0005% / CD: 0.0015%
• Signal to Noise Ratio: USB DSD: 110dB / USB PCM 24bit: 118dB / CD: 118dB
• Dynamic Range: USB DSD: 110dB / USB PCM 24bit: 118dB / CD: 101dB
• Line Output Level: 2.2Vrms
• Headphone Output Level: 28mW / 32 ohms
• Power Consumption: 38W
• Power Consumption on Standby: 0.3W
AUDIO FEATURES:
• HDAM: New HDAM + HDAM-SA2
• Power Transformer: EI
• Headphone Amp: High slew rate op-amp / + HDAM-SA2
• H/P Amp Gain Setting: Yes (Low / Mid / High)
• Digital Filter: Filter 1, 2 Selectable
CONNECTIVITY/PLAYBACK CAPABILITY:
• CD Compatibility: CD / CD-R/RW / WMA / MP3 / AAC
• Data Disc Compatibility: DSD / WAV / ALAC
• Fixed Analog Output (RCA): 1 (Gold Plated)
• Optical input / output (Maximum Support): 0 / 1
• Coaxial input / output (Maximum Support): 0 / 1
• Headphone Output: 1
• Remote Control Bus TerminalL Yes (RC-5 In / Out) w/ External / Internal Select Switch
• Flasher Input: Yes (U ver)
• USB A: 1 (Front) / Mass Storage Class / 5V/1A
• Support format: FAT 16/32
• USB-A: FLAC / WAV / AIFF / ALAC / DSD: Yes / Yes / Yes / Yes
• DSD Native Playback: Yes
• USB Firmware Update: Yes
FUNCTION:
• Remote Controller: System Remote (Amp and CD Player Control)
• Unit control (Button): POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
• Unit control (Knob): 1, Phones Level
• Dimmer for Front Display: Bright / Dim / Dark / Off
• Control with App via Network Player (Use Remote Control Bus): Yes
• Last Function Memory: Yes
• Timer Play (Need external audio timer): Yes, On/Off selectable in Menu
• Auto Standby Mode: Yes
• Other: Stereo RCA Cable x1, Remote connector cable x1
• Accessory Box: Yes
• Battery: Yes (AAA x2)
• Power Cord: Yes
