Description
EverSolo DMP-A6 Master Edition Network Music Streamer
Eversolo presents the DMP-A6 Master Edition. The Master Edition features several upgrades over the original DMP-A6 including upgraded oscillators in the form of two ACCUSILICON FEMTOSECOND oscillators with greater noise reduction and improved jitter and an upgraded OPA1612 op-amp with ultra-low noise and low distortion (1KHz 0.000015%). Additionally, the case gets special gold badging on the faceplate.
A New Epoch is Beginning
The product of years of development, the EverSolo DMP-A6 Master Edition is a breath of fresh air in the present landscape of hi-res audio streaming devices. With a quad-core processor and large built-in memory, this is an all-in-one audio player that’s built for lossless music streaming and playback.
Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS 9038Q2M professional DACs, a fully balanced differential circuit and professional audio tuning, all these factors contribute to the superior performance of DMP-A6. An unprecedented experience is offered to music lovers with music streaming services, local music management, mobile app control, and an exclusive control system. The DMP-A6 implies the beginning of a new epoch of music streaming.
Self-Developed EOS Audio Engine
EOS (Eversolo original sampling-rate) audio engine is developed by Eversolo engineers, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SRC restriction, supporting the direct audio output of third-party apps (Apple Music hi-res Direct output).
Hi-Res Audio & Master Recording Decoding
The DMP-A6 is Hi-Res Audio certified by JAS, which equates to guaranteed superior sound quality. Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA. MQA (Master Quality Authenticated) technology enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
2x ES 9038Q2M DAC Decoding
Dual ES 9038Q2M chips are used to establish Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains a better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768kHz/32bit, and MQA hard decoding.
The DAC setting of the DMP-A6 provides seven types of digital filters, with different modes corresponding to different sound characteristics, which can be switched according to personal preferences.
3rd Generation XMOS 316 Audio Processor
With a 3rd generation XMOS 316 audio processor, the DMP-A6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. The USB port supports DSD512 Native, PCM768kHz/32bit and MQA full decoding. The Optical and Coaxial ports support DSD 64 (DOP), PCM192kHz/24Bit.
Qualcomm QCC5125 Bluetooth Module
Connect mobile phones, tablets, laptops, and other compatible devices to the DMP-A6 via Bluetooth for seamless high-quality wireless music playback. The Qualcomm QCC5125 Bluetooth module used by the DMP-A6 supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC codecs and is compatible with Bluetooth 5.0.
Large LCD Touchscreen for Better User Interaction
The DMP-A6 is a professional streamer system equipped with a large 6″ LCD high-definition touchscreen. The simple but responsive user interface runs as smoothly as a smartphone and provides intuitive touch controls for accessing system settings, your local music library, third-party apps, and more.
DOH Chips for HDMI DSD Multichannel
As a multi-channel streamer, the DMP-A6 features dual DOH processing chips for HDMI audio especially to play and output master DSD music through the HDMI Out connection. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides a regenerated high-precision independent clock for HDMI.
Internal High-Speed M.2 SSD Slot
Expandable with additional storage, the DMP-A6 features an M.2 NVME 3.0 2280 SSD slot built into the underside of the chassis, allowing you to integrate a solid-state drive up to 2TB without needing to open up the streamer case. Faster, stable and with no noise, SSDs are ideal for local high-quality music playback. SSD sold separately.
Rich Input and Output Ports
With its diverse talents and connections, the DMP-A6 easily integrates with just about any system. As a streaming source device, of course, it can be thought of as a digital turntable with access to a huge record collection via all its compatible streaming services and library of your own files.
The network streamer can connect with high-end decoding devices via the HDMI, USB, Optical and Coaxial digital output ports. Alternatively, as a decoder itself, the DMP-A6 connects with audio source equipment like PCs and mobile devices via the Coaxial, Optical, USB Type-C inputs ports, and wirelessly with APTX HD Bluetooth. Through the balanced XLR and single-ended RCA analogue outputs, you can connect directly to active speakers or to a hi-fi stereo amplifier in your two-channel or multi-channel system.
Fully Balanced Preamp Circuit
The DMP-A6 analogue circuit adopts a fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity and improves channel separation by eliminating shared loops for stronger and more consistent signal quality.
Low Ripple High-Performance Power Module
The DMP-A6 is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. A choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100kHz to 5MHz, ensuring cleaner power, a softer background noise, and clearer musical details.
Dual Accusilicon Femtosecond Clock Processing
Low-jitter high-precision dual Accusilicon Femtosecond clocks are integrated into the DMP-A6 Master Edition. Two high-precision crystal oscillators effectively reduce jitter and achieve more precise audio decoding.
Professional Tuning and Reliable Audio Indicators
The DMP-A6 has been expertly tuned, and the circuit has been thoughtfully constructed, thanks to the wealth of knowledge from engineers at Eversolo who come from a background in development in the hi-fi industry. THD+N is -120 dB (0.00009%), SNR is 128 dB, and dynamic range is 128 dB. The leading indicators provide a strong base for high sound quality.
Handpicked Audio Components
The sound quality of the DMP-A6 analogue output is monitor-level. The primary elements of the audio circuit are of very high quality, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitors and Omron relays from Japan, TI Audio Operational Amplifiers from the USA, etc. The goal is to provide a more authentic and pure sound performance with parts that have been proven reliable.
Music Library for Local Playback
Eversolo Music Library not only provides excellent local music playback performance but also an improved music management experience for you. Add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE files and so on; songs are displayed in categories based on genres, albums, artists and sample rates; making it incredibly easy to organise your favourite songs and search by album, artist, or song initials.
Music Services at Your Fingertips
The DMP-A6 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music. Support for numerous third-party apps, high-resolution audio Direct output using the original EOS engine.
Wireless Music Streaming
Roon Ready, Spotify Connect, Tidal Connect, DLNA, and AirPlay are supported by the DMP-A6. High-quality music can be streamed online to mobile devices on the same local network, making it simpler to enjoy online music services and easier to play back music at home.
Effective Media Management System
The DMP-A6 offers a robust media management system that enables editing operations for local hard drives and network storage like copying, copying, pasting, cutting, and deleting. The USB port can be configured as USB OTG, making it easy to connect the PC to DMP-A6 for local file management. Internal SMB sharing function allows sharing of media files from a connected mobile device or internal SSD (if installed) to other media playback devices, computers or mobile devices in the same network. This makes it possible for the DMP-A6 to be used as a network storage device to share audio sources at any time.
CD Playback and Ripping
The DMP-A6 allows for CD playback by connecting an external USB optical disc. The CD Rip app adopts a data validation mechanism and error correction function to save audio data from CD losslessly. The application’s algorithm intelligently matches CD album and song names (officially released CDs are required), losslessly rips tracks and automatically generates album and artist info.
Multiple Network Protocols
DMP-A6 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UPnP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.
Smart Control App
Android/iPhone/iPad control apps are developed for the DMP-A6. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. Screen mirroring is also supported by installing third-party apps.
roon READY
Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that Eversolo network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and Eversolo deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.
Unique Aluminium Chassis
The DMP-A6 is made from aviation aluminium and features a CNC-machined body for solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements. This design philosophy results in a device that makes an impression when seen on a rack with your other hi-fi equipment.
Personalised VU Meters
For audiophiles and hi-fi enthusiasts, the DMP-A6 provides a wide range of personalized dynamic VU meters for the 6″ LCD colour screen on the front panel. This wonderfully interactive experience is offered with real-time full-format music display, including DSD.
KEY FEATURES:
• Special edition gold detailing
• Dual Accusilicon Femtosecond oscillators with noise reduction and improved jitter
• OPA1612 with ultra-low noise and low distortion 1KHz 0.000015%
• 3rd generation XMOS XU316 16-core audio processor
• Quad-core ARM Cortex-A55 professional processor
• 6″ large LCD colour touchscreen
• 4GB DDR4 + 32GB eMMC memory for running applications smoothly
• Slot for M.2 NVME 3.0 SSD up to 2TB (not included)
• 2x ES 9038Q2M DACs for independent high-res stereo audio decoding
• Supports DSD512 Native, PCM768kHz/32Bit, MQA full decoding
• 2x DOH chips support HDMI DSD Native and D2P multi-channel output
• Dual-band 2.4GHz + 5GHz WiFi & Ethernet connection
• Qualcomm QCC5125 Bluetooth 5.0 module with APTX HD & LDAC protocols
• Bespoke operating system based on Android 11
• Low-jitter dual clock synchronous processing with higher accuracy
• Fully balanced circuit, XLR balanced and RCA single-ended hi-fi analogue pre-outs
• High-quality low-noise power supply provides pure power to audio circuits
• Support 2-channel and Multi-channel Gapless playback (FLAC, WAV)
• Personalised music management, lyric matching and music data matching
• EOS audio engine developed by Eversolo, globally bypassing SRC restrictions
• Support Direct audio in 3rd party apps (Apple Music hi-res direct output)
• Full decoding and rendering support for MQA on Optical, Coaxial and USB inputs
• Support USB, Optical, Coaxial, and HDMI digital audio bit-perfect output
• Supports external USB optical drive for CD disc playback and ripping
• Music services include Tidal, Qobuz, Highresaudio, Amazon, and more
• Support Roon Ready, Spotify Connect, Tidal Connect, and more
• Support music playback from Air Play and DLNA
• Supports NFS, SMB, Web DAV, and UPnP protocols to access LAN storage devices
• Supports built-in SMB network media sharing service for easy local media sharing
• Exclusive mobile app for Android/iOS smartphones and tablets
• Solid aluminium alloy brushed panel chassis
Eversolo AMP-F2 2ch Class D Power Amplifier
The Eversolo AMP-F2 is a 2-channel class D power amplifier, designed in collaboration with Starke Sound in California, and is based on the innovative NS600 module created by the Starke Sound team.

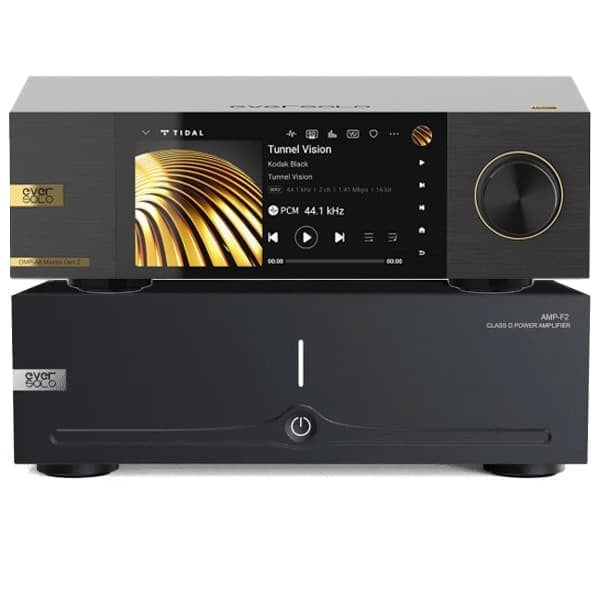

Pair with the DMP-A6 or A6 Master for the Perfect Mini System
The compact size of the AMP-F2 is a perfect match for the DMP-A6 / DMP-A6 Master / DAC-Z8 etc.
Dynamic Power, Detailed Presentation
The Eversolo AMP-F2 is a 2-channel class D power amplifier, designed in collaboration with Starke Sound in California, and is based on the innovative NS600 module created by the Starke Sound team. The AMP-F2 features a high sampling rate of 600kHz and employs an efficient Class D amplification structure, coupled with optimised circuits to maximise audio quality. A newly designed SAPS audio-specific switch mode power supply significantly reduces noise and enhances dynamic performance. The AMP-F2 is also bridgeable, allowing flexible configuration for two-channel or single-channel setups.
Vigorous Output
The AMP-F2 is equipped with Starke Sound’s NS600 amplifier module. Each channel can output a constant 250W RMS (4 ohms) @ 1% THD+N. When bridged, the AMP-F2 can support up to 450 W RMS (2 ohms) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound, NS600 Module
The NS600 module by Starke Sound employs PurePath™️ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio.
Powerful Drive
Featuring a 600W high-efficiency, low-ripple, low-EMI switch mode power supply, the AMP-F2 delivers consistent and powerful output, extremely low noise, and enhanced dynamic performance across the system.
Environmentally Friendly Power Consumption
The AMP-F2 has an extremely low standby power draw (0.5W) and idle power consumption (14W), meaning it is kinder to your energy bill.
Aluminium Body, Shielded Design
The AMP-F2’s chassis is made from aluminium with complete self-protection and an anti-interference design to avoid disturbances from various electrical environments.
The AMP-F2 is also designed to perfectly match the size of the DMP-A6, DMP-A6 Master, and DAC-Z8. It is also compatible with the DMP-A8 and DAC-Z6.
One-Touch Activation, Seamless Control
The AMP-F2 is equipped with standard 12V TRIGGER IN and TRIGGER OUT functions, allowing it to be synchronised with other devices that support the standard TRIGGER interface for power on and off. Using the USB to TRIGGER adaptor cable provided with the AMP-F2, you can connect the USB Type-A interface of the DMP-A6 to the TRIGGER IN of the AMP-F2 to achieve synchronisation.
KEY FEATURES:
• 145W @ 8Ω (1% THD), 250W @ 4Ω (1% THD)
• 2 channel Class D power amplifier
• Bridgeable for mono applications
• Developed in collaboration with Starke Sound
