Description
High performance nine-channel amplifier
Discrete high-current amplifiers deliver up to 105W per channel (at 8 ohms, 20- 20kHz, THD 0.08%)—enough power to drive any speaker.
3D audio experience
Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.
Configuration flexibility
AVC-X3800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 11.4 channel processing capability, Pre- Amplifier mode, and optional Dirac Live upgradability (with fee, coming soon in 2023).
Advanced 8K home theater
8K video is supported on all six HDMI inputs and two of the three outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.
KEY FEATURES:
• Dolby Atmos
• DTS: X
• HDR10+
• Dolby Vision
• Geared for 8K
• Music streaming throughout your home with HEOS® & Airlay2 Built-in
• Audyssey Room Correction Technology & MultEQ

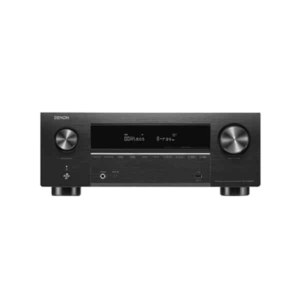

AVR-X3800H AV Receiver with HEOS® Built-in | Denon™
Specifications
MULTICHANNEL SURROUND:
• DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, No
• DTS Neo:X, DTS Neural:X: No, Yes
• DTS Virtual:X: Yes
• Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
• Dolby ProLogic Ilz, Dolby Surround: No, Yes
• Auro 3D: Yes
• 360 Reality Audio / MPEG H: Yes, Yes
• Multichannel Stereo: Yes
• Max. Number of Processing (Pre-Amp) Channels: 11.4
SOUND ENHANCEMENTS:
• Discrete Power Amplifier: Yes
• Pure Direct: Yes
• Audyssey: MultEQ XT
• Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
• Audyssey LFC: Yes
• Dirac Live Upgradability: Yes
• Compressed Audio Restorer: Yes
NETWORK:
• Media Server: Yes
• HEOS Wireless Multi-Room Technology: Yes
• Alexa / Google Voice Assistant / Apple HomePod: Yes, Yes, Yes
• Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
• Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
• Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
• DSD Audio Streaming: Yes (2.8/5.6MHz)
• AirPlay 2: Yes
• TuneIn: Yes
• Spotify Connect: Yes
• Pandora: Yes
• SiriusXM*: Yes
• Roon Tested: Yes
• HEOS App Control: Yes
• Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
• Ethernet Ports: Yes
• Wi-Fi: Yes
• Bluetooth: Yes
HDMI:
• HDMI Inputs: Back, Front: 6, No
• HDCP2.3 support: Yes
• HDMI Outputs: Main, Zone: 2, 1
• HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
• HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes, Yes, Yes, Yes, Yes
• ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
• Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: Yes, Yes, No
• 3D Signal Pass-through: Yes
• 8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
• Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
• Auto LipSync: Yes
MULTI-ROOM CI:
• Multi-Room Zones: 2
• Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
• Zone Audio Output: Speaker, Pre-Out: Yes, Yes
• IP Control, RS232 Control, Web Control, App Control: Yes, Yes /Yes, Yes
• Remote In / Out: Yes, Yes
• HDMI Diagnostics: Yes
OTHER:
• Auto Speaker Setup by Microphone: Audyssey MultEQ XT
• Front Display: 1-Line FLD
• GUI Languages: 3
• Setup Assistent: Yes
• Quick Select Plus, Quick Select: Yes, No
• Variable Crossover: Yes
• Optimized Bass Redirection: Yes
• ECO Mode: Yes
• Auto Power Off: Yes
• Sleep Timer: Yes
INPUTS/OUTPUTS:
• HDMI In, Out: 6, 3
• Multi-Room Video Out: Video, HDMI: No, Yes
• Analog In, Out: 5, No
• Phono (MM) In: Yes
• Digital In: Optical, Coaxial: 2, 2
• Multi-Room Out: Analog, Digital: 1, No
• Multichannel Preout: Yes (11.4)
• Subwoofer Out: 4 (Independent)
• Speaker Terminal: Gold-Plated Screw, Regular Screw: No, Yes
• Number of Speaker Terminals: 11
• Speaker A / B: Assignable
• Bi-amp Drive: Assignable
• Multi-Room Speaker Terminal: Assignable
• Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
• USB Audio, Made for iPod, Made for iPhone: Yes, No, No
• AM/FM Tuner: Yes
POWER:
• Number of Power Amps: 9
• Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive): 105W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 135W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 215W
GENERAL:
• System Remote Control: RC-1253
• Pre-Programmed, Learnable, LCD Display: No, No, No
• Power Consumption in W: 660W
• Power Consumption No-Sound (ECO On / Off) in W: 60W/100W
• Standby Consumption in W: 0.1
• CEC Standby Consumption in W: 0.5
• Network Standby Consumption in W: Less than 2.0
DIMENSIONS:
• (W x D x H) in Inches: 17.1 x 15.3 x 6.6
• Weight: 12.5Kg
PRODUCT SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PLEASE CONFIRM WITH MANUFACTURER PRIOR TO ANY CONSTRUCTION WORKS
