Description

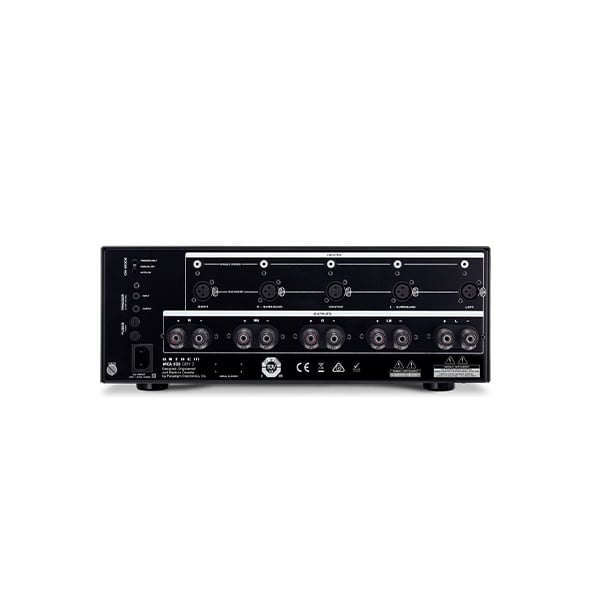

Anthem MCA 525 Gen2 5 Ch Power Amplifier
The Anthem MCA 525 GEN 2, designed and Crafted in Canada, is like no other amplifier in the world. It boasts a host of cutting edge technologies including custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminium heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.
The result is refined muscle…perfect for the demanding transients of modern, action-movie soundtracks.
And the MCA 525 Gen2 delivers power and texture with minimal THD…a supremely quiet background noise floor.
The MCA 525 Gen2 perfectly complements the Anthem AVM 90 and 70 AV Processors to offer an “audiophile-standard” home theatre experience.
KEY FEATURES:
• Multi-channel power amplifier
• 5 x 225W at 8 ohms
• 2 ohm capable
• XLR and RCA inputs
• 120db S/N
• Large capacity toroidal transformer
OUR THOUGHTS:
• Exceptional value high performance amplification
Specifications
DIMENSIONS:
• 438mm W x 169mm H x 460mm D (without connections)
• Mass 27.5 kg
IN THE BOX:
• Anthem MCA 525 GEN2
• 240V IEC power cable
FINISH:
• Black
ENGINEERING:
• 5 channel power amplifier
• 5 x 225 Watts into 8 Ohms continuous
• 5 x 400 Watts into 4 Ohms continuous
• 5 x 600 Watts into 2 Ohms continuous
• THD at 100 Watts at 1 kHz 0.0010%
• THD at 100 Watts at 20 kHz 0.015%
• IMD at 100 W ITU-R (19 kHz + 20 kHz) 0.0005%
• SMPTE (60 Hz + 7 kHz) 0.002%
• SNR, IEC-A, ref. 225 W 120 dB
• Frequency Response, 20 Hz to 20 kHz open circuit ± 0.1 dB
• 8 Ω ± 0.1 dB
• 4 Ω ± 0.1 dB
• 2 Ω ± 0.2 dB
• Power Bandwidth, -3 dB at 200 W into 8 ohms 90 kHz
• Slew Rate 30 V/μs
• Damping Factor, 20 Hz to 1 kHz 300
• Channel Separation, 100 Hz to 10 kHz >65 dB
• Input Impedance RCA / XLR 10 kΩ / 15 kΩ
• Input Sensitivity, 225 W into 8 Ω 1.5 Vrms
• Voltage Gain 29 dB
INPUTS:
• Analogue audio RCA x 5
• Analogue audio XLR x 5
• 12 Volt trigger x 1
OUTPUTS:
• Speaker binding posts x 5 channels
• 12V trigger x 1
FEATURES AND FUNCTIONS:
• Audio sensing power-up
• 12 Volt trigger power-up
ACCESSORIES:
• Rack kit
WARRANTY AND SUPPORT:
• 2 year manufacturer warranty
